【供应】全自动皮壳机
  • 【供应】全自动皮壳机
  • 当前价: 1.0 元/台 (不含运费)
  • 最小起订: 1台
  • 供货总量: 10台
  • 最新修改: 2015-06-01 14:08:54.0
公司信息

东莞市力顺源机械有限公司

联 系 人:罗敏 女士
联系电话:86 - 769 - 88116769
手    机:13798915058
电子信箱:ly@dglyjx.com
所 在 地:广东 东莞
公司地址:东莞市道滘镇南丫南阁东路
  • 产品型号:LY-A500PKJ
  • 产品规格:500
  • 原 产 地:广东省
  • 适用范围:各类书型盒、文件夹、精装书壳等产品的裱内衬纸而设计。
  • 详细描述:LY-A500PKJ全自动皮壳机是针对各类书型盒、文件夹、精装书壳等产品的裱内衬纸而设计,本机器速度快,精度高,
    本机安装有自动寻位装置,有效避免了因偏位或移位现象所导致的大量次品和废品,有效的提供了产品质量。
    整机采用PLC程序和变频控制,操作方便,更换产品灵活。

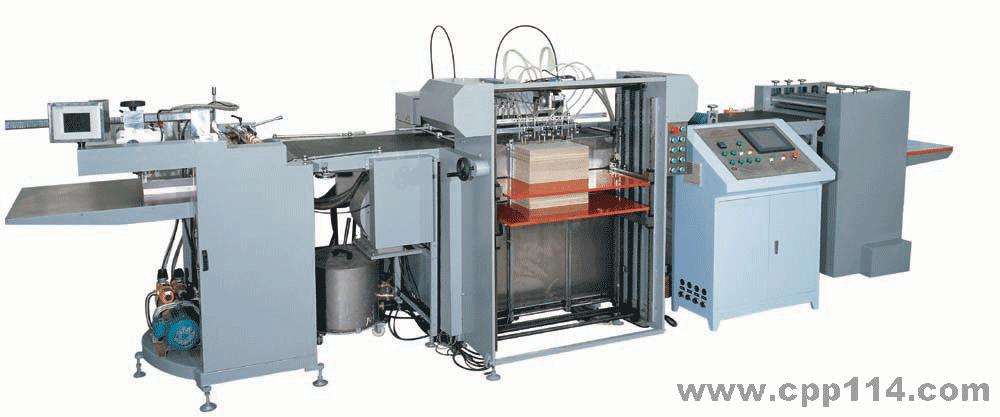

    Full Automatic hard cover forming machine LY-A500PKJ
    LY-A500PKJ Full Automatic Hard Cover Forming Machine is designed for pasting the inner paper for the hard book cover, book case, files and so on. The machine is running high speed with high accuracy.
    This machine has automatically seek position device, can be avoided many inferior products and reduce the waste because of the wrong position and distortion of the inner paper. It is improving the quality effectively.

    It adopts PLC control procedures and transducer, examine the malfunction automatically, it is very easy to operate and change the different products.


    型号 Model LY-A500PKJ
    电源 Power supply 380V/50HZ
    最大加工尺寸 Operate size (max) 900*500mm
    发热功率 Glow Power 5kw
    机器功率 Machine Power 10kw
    工作速度 Work speed 25-35pcs/min
    气压(帕) Air pressure 0.6-0.8pa
    机器尺寸 Machine Dimension 7000*2000*1700mm
    机器净重 Machine Weight 3000kg
  • 售后服务:非人为损坏,免费保修一年,终身维护。
